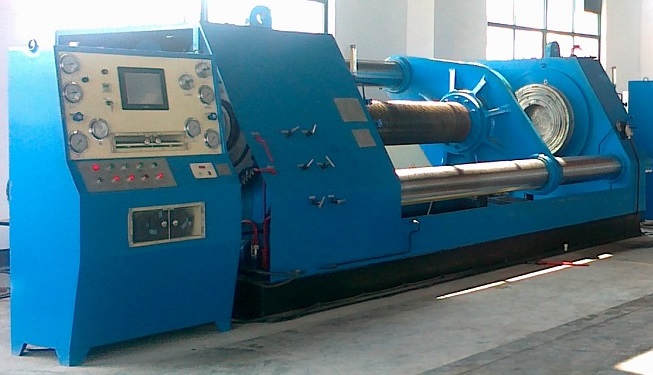

Safety Relief Valve Test bench for pneumatic and hydraulic tests and adjustment of safety valves with hydraulic clamping and panel mounted test gauges. All water-wetted parts are corrosion-proof. Our Safety Relief Valve Test bench provides the most reliable method available to test Safety Relief Valves in accordance with the applicable specifications.

CONFORMED WITH STANDARD OF TESTS: API 598; API 527; DIN EN 12266; ISO 5208; ASME B 16.5; ASTME 1003-05; GOST 5762-2002; GOST 9544-2005.

Safety Relief Valve Testing including: leakage test of disk and seat interface sealing; trim leakage test; functional test and working pressure adjustment.

Connection: Flanged, Thread.

Test objects: Safety Relief Valve

Test Media: water / air / nitrogen

Optional Items: Computer Registrations System, Safety Closure

Safety Relief Test Bench Feature:

• Fast clipping and centering of tested item by synchronized movement of three holding straps.
• Sealing of tested item is carried out by the hydraulic cylinder.
• All water-wetted parts are corrosion-proof.
